Trying to understand SPI and USART DMA transfer code

[datenwolf]

In the STM32 spi driver code one can find for example spi_lld_send:

Code: Select all

void spi_lld_send(SPIDriver *spip, size_t n, const void *txbuf) {

  dmaStreamSetMemory0(spip->dmarx, &dummyrx);
  dmaStreamSetTransactionSize(spip->dmarx, n);
  dmaStreamSetMode(spip->dmarx, spip->rxdmamode);

  dmaStreamSetMemory0(spip->dmatx, txbuf);
  dmaStreamSetTransactionSize(spip->dmatx, n);
  dmaStreamSetMode(spip->dmatx, spip->txdmamode | STM32_DMA_CR_MINC);

  dmaStreamEnable(spip->dmarx);
  dmaStreamEnable(spip->dmatx);
}

I understand the first two "paragraphs" of that code to set the DMA engine starting address and increments for each buffer (in the case of receive buffer a single memory location, without incrementing the address).

A very similar code is used for U(S)ART transfers, however it just sets the DMA engine for either TX or RX, not both.

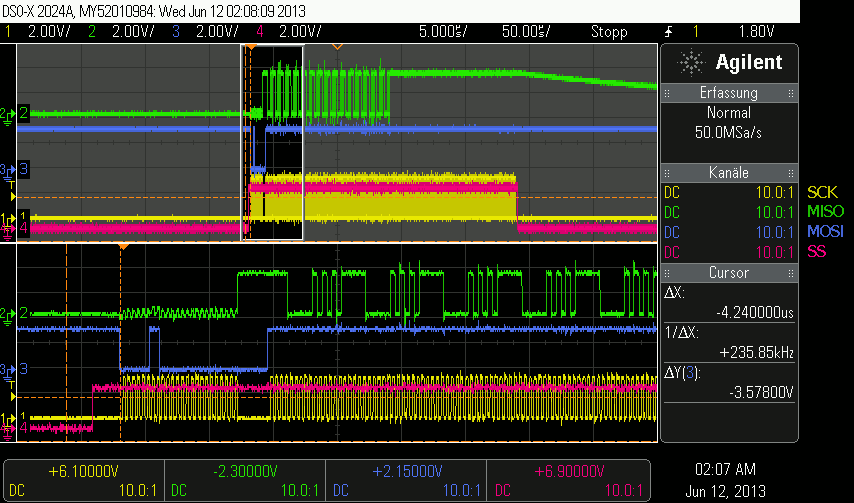

What I don't understand is how RX and TX are synchronized and clocking started. In the oscilloscope trace it's clear that starting a DMA transfer will also enable the clocking:

EEPROM SPI Read Operation Trace


If I understand the STM32 documentation correctly, in order to get a reliably synchronization between RX and TX of a SPI periphial you first have to disable the SPE bit in CR1, then parametize and enable the DMA engine(s), and finally set the SPE bit in CR1 to initiate the transfer. Or does the STM32 not clock the SPI for just a RX and a dummy TX must be started to provide an RX clock?

And how would I extend the USART driver to allow for Exchange transfers? In my current project there are several independent SPI busses; too much as that the STM32Fx07 periphials would suffice. So repurpose one of the USARTs as a slow master only SPI.

[Giovanni]

Hi,

The SPI clocking starts when the first frame is pushed by the DMA into the fifo, the RX DMA is triggered when a frame is entirely clocked in, the operation is synchronous because TX and RX use the same clock and both operations happen necessarily at the same time.
The DMA can be enabled after enabling the SPI because the operation will not really start until the TX DMA starts pushing frames.

In the UART driver the situation is different, RX and TX are not synchronous among them, you can start a TX transaction and an RX transaction independently, you should see RX and TX as two separate mono directional units each with its own DMA.

Giovanni
