here is afew pics for what will soon be released. Open M2M/Tracking platform.
Hardware will support the the following:-
Cortex M4
8-24VDC input
Li-Ion Battery and Charging
3 axis Accellerometer
Upto 32Mbit Serial Flash
GPS receiver
Quad band GSM Modem
USB device
2 x RS232 ports
uSD-Card
CANBus
3 Inputs(1 For ignition on Tracking applications ) and 2 solid state outputs.
4 Indication LEDs.
RTC with Tamper
RTC Backup via Coin Cell
Software Platform is based on Chibios.

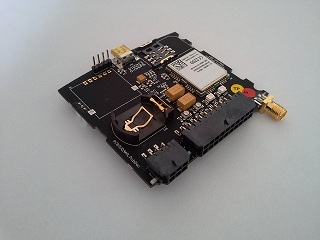

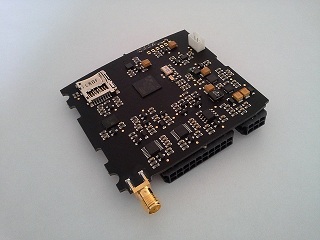

I've attached some pics for you to have alook at.
