Ancient ChibiOS application, about 1995

[Giovanni]

Hi,

I forgot to post this, there is the ChibiOS ancestor in this little thing I designed almost 20 years ago (except the case), it is still commercially sold too.

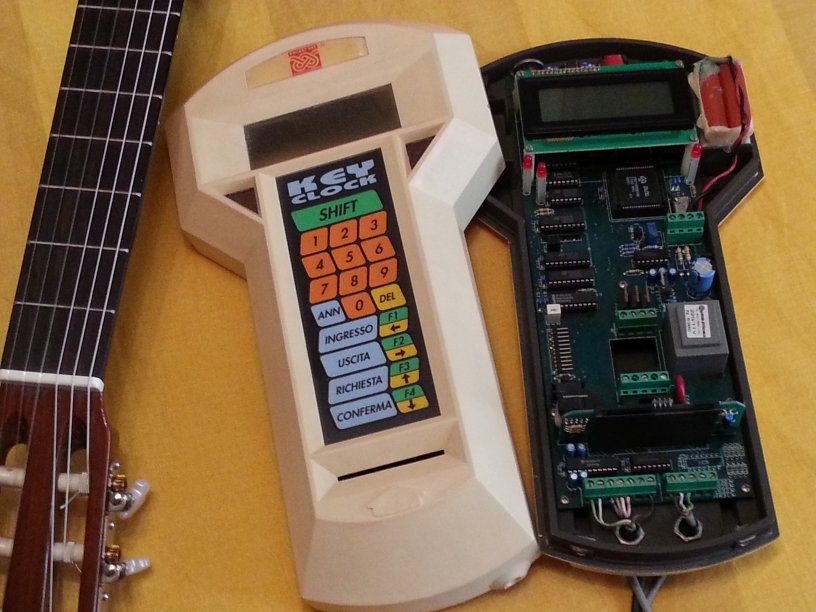

It is a wall-mounted smart card terminal with networking (RS485) capability, keyboard and display. Thanks to power management it is able to work 48hours using autonomous power.

It uses a Z180 with 32KB EEPROM, 8KB RAM and 32KB of backup RAM. The OS is based on the ChibiOS ancestor "MK".

Giovanni

[DrunkenDonkey]

Are the strings metal or palstic based? Look plastic...
Except for america, ChibiOS is in legal age now and can drink

[Giovanni]

It is known to like beer

Nylon strings, E, A and D have a metal filament spiral cover but still nylon inside.

Giovanni

[Tectu]

That's fancy!
How comes that the case is symetrical (the transparent triangles on the left an right) but on one side there are two an on the other only one LED?


~ Tectu
